New Generation Air-end, Direct Gear Drive, IE3 premium efficiency motor standardly equips to minimize all types of losses and achieves best rated performance as base load machine. Industry leading quality with IoT compatible control. Best in class air flow in all the range.
PREMEIUM LINE - Fixed speed model

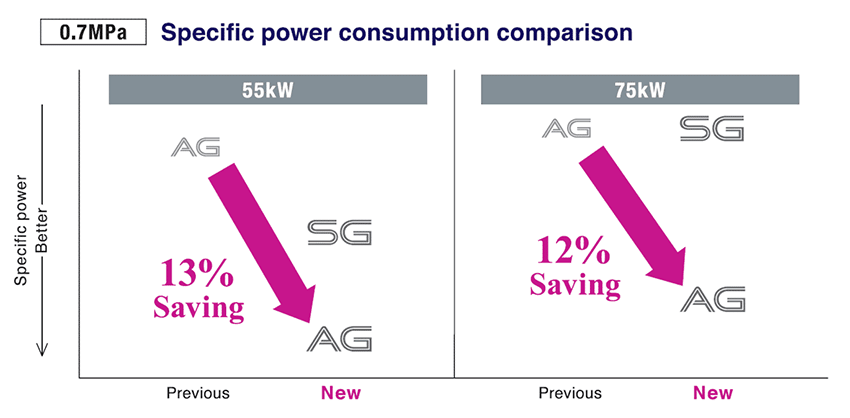

KOBELION AG equips state-of-the-art extra large size air end. Newly developed profile rotors and flow-optimized bearing lube control boost energy efficiency to the highest standard. Up to 15% energy, 8.5% on average more efficient compare to its previous model.
Designed to achieve best efficiency in rated load. Precise machined helical gears are directly mounted on motor shaft and eliminate coupling or v-belt. Single piece drive train minimize vibration of rotating part and mechanical losses.
Also adjusting and replacing of v-belt is no longer necessary. All the model is with IE3 Premium efficiency motor.
KOBELCO's "Energy saving logic" can reduce pressure band of load/unload control to eliminate excess pressure hike.
Designed with enough margin against temperature, continuous duty up to 45°C, can be operated up to 50°C.

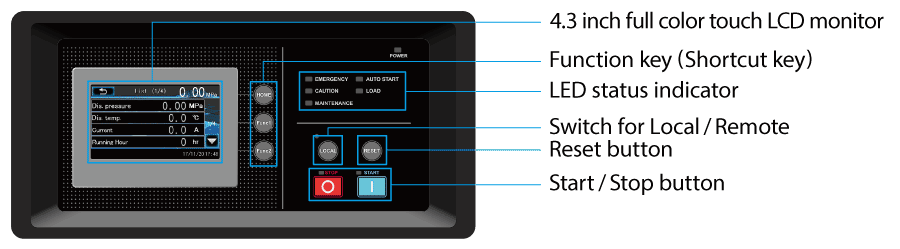

Newly developed "NGSC-430/700" is sophisticated LCD interface which enables you to figure out necessary information at a glance.
