Summit of high-tech for extreme efficiency. Premium energy saver with industrial top notch Air-End, super premium efficiency (IE4 equiv) IPM motor, built-in overhung design. Much wider range, much better usability.

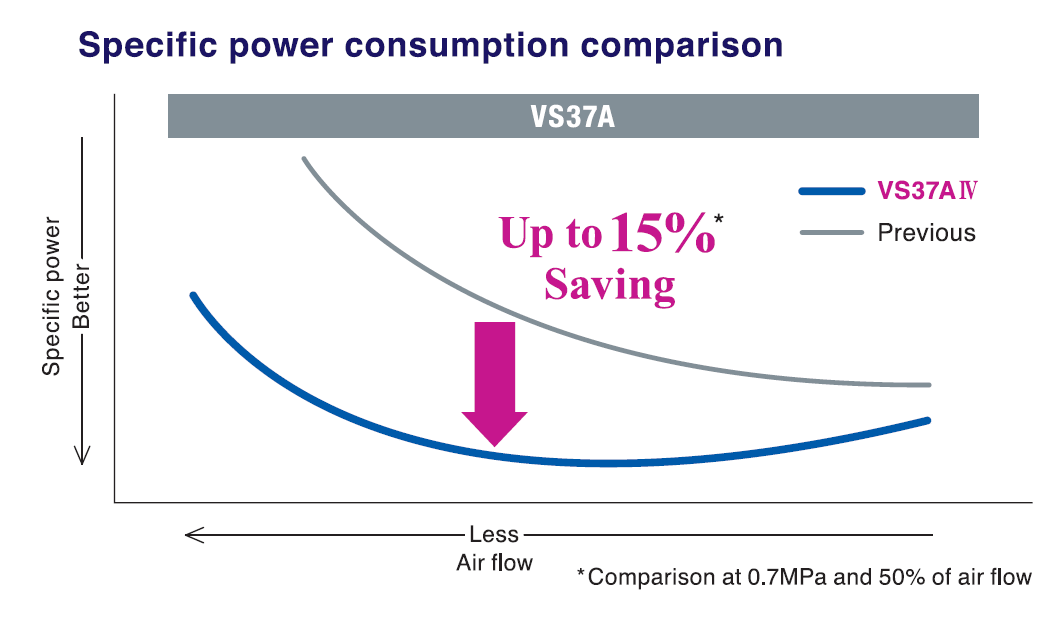

Thanks to newly developed Air-End from its rotor profile, super premium efficiency IPM motor and optimised package design, KOBELION VS achieved best in class specific power consumption.
Motor rotor is directly mounted on the rotor shaft. No coupling, no belt and no gear design realize zero transmission loss.

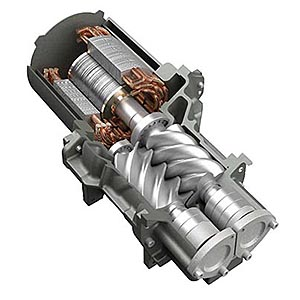

With built in overhung design, adjusting and replacing of v-belt is no longer necessary. It is not even required to change or re-grease motor bearings.
New KOBELION VS series equips super premium efficiency IPM (interior permanent magnet) motor, which efficiency is equivalent to IE4 of IEC standard. IPM has better efficiency from low load to high load compare to induction motor. This IPM is with oil cooled jacket cooling system with insulation class H, which has better resistance to high ambient conditions.

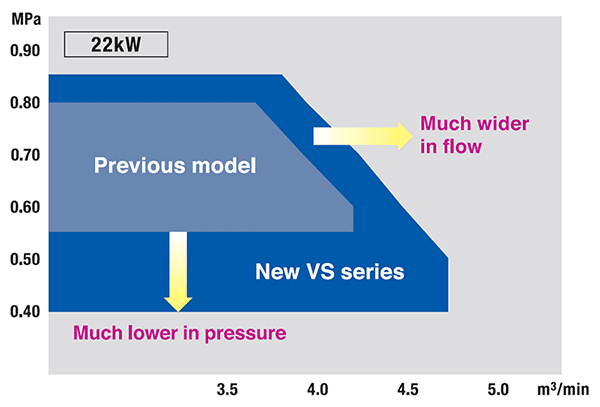

Wide Range Control of KOBELION VS can deliver much higher flow when it runs at lower pressure point. KOBELION VS senses line pressure and automatically change maximum rpm limit. New KOBELION VS achieves much higher flow and much wider pressure range. As a leading company of Inverter compressor, we can offer cutting-edge value.
Designed with enough margin against temperature, continuous duty up to 45℃, can be operated up to 50℃.
Newly developed "NGSC-430/700" is sophisticated LCD interface which enables you to figure out necessary information at a glance.
