KOBELION VS/AG⁺ seriese
(Large size)

  • Home
  • Oil Injected Compressors
  • KOBELION VS/AG⁺ seriese (Large size)

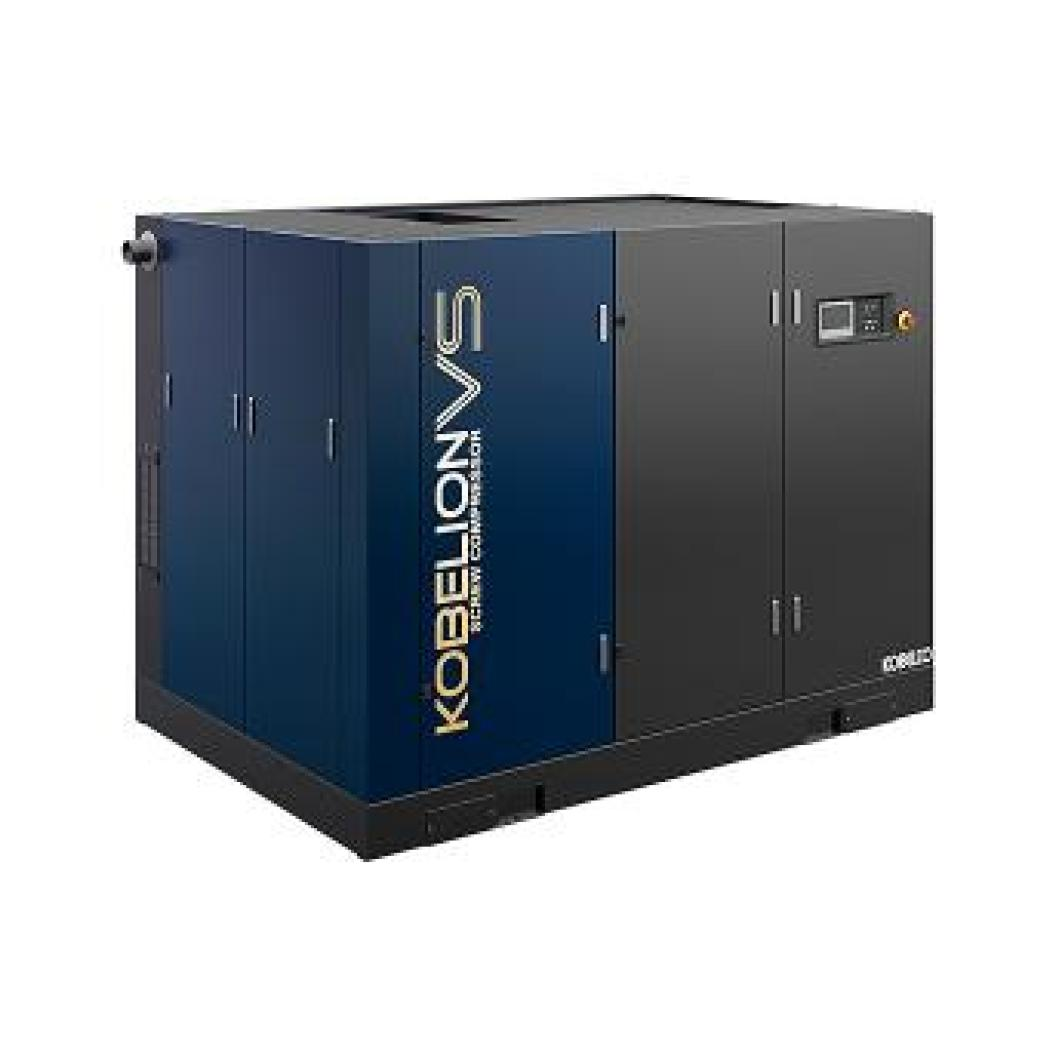

KOBELION VS/AG⁺ seriese (Large size)

Motor output : 110 - 250kW
Discharge air flow : 19.0 - 54.1 m3/min

Features

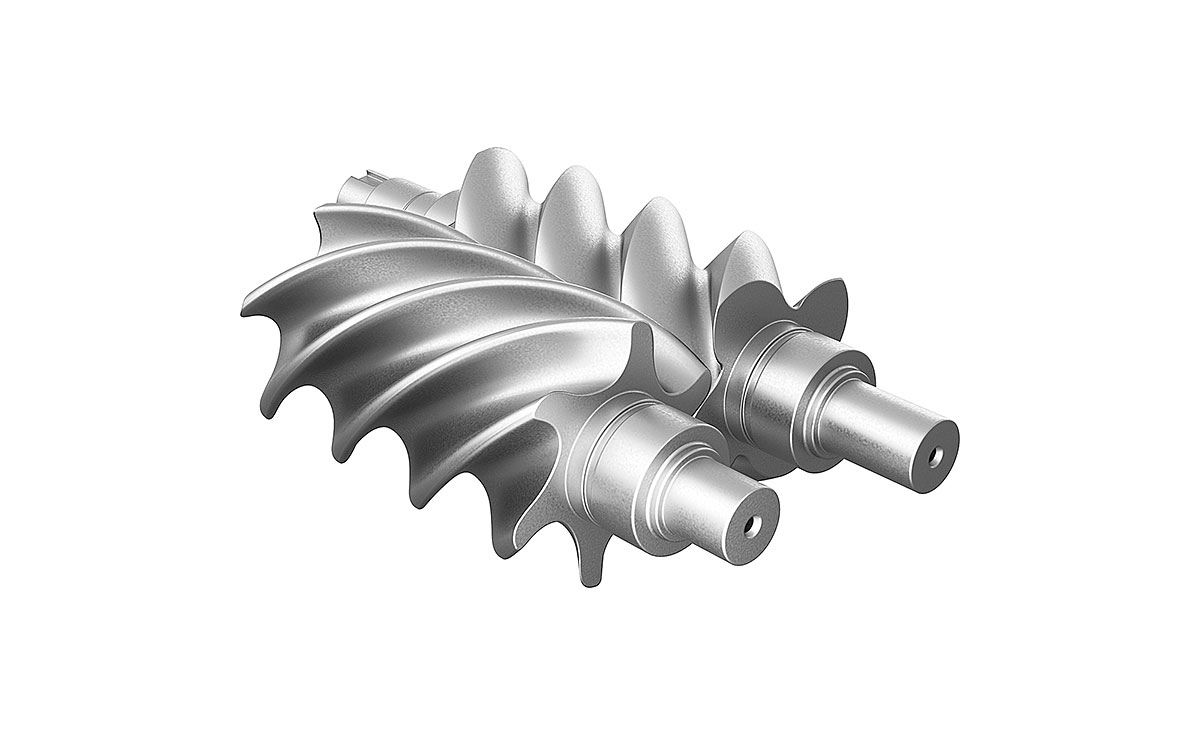

Powered by Cutting-Edge High-Efficiency Air-End

New generation air-end, delivering significant efficiency improvement compared to previous model. Direct-Gear-Drive design eliminates maintenance of coupling and v-belt, ensuring seamless integration of the powertrain. Experience enhanced reliability and extended maintenance intervals.

Built-in Over Hung Design

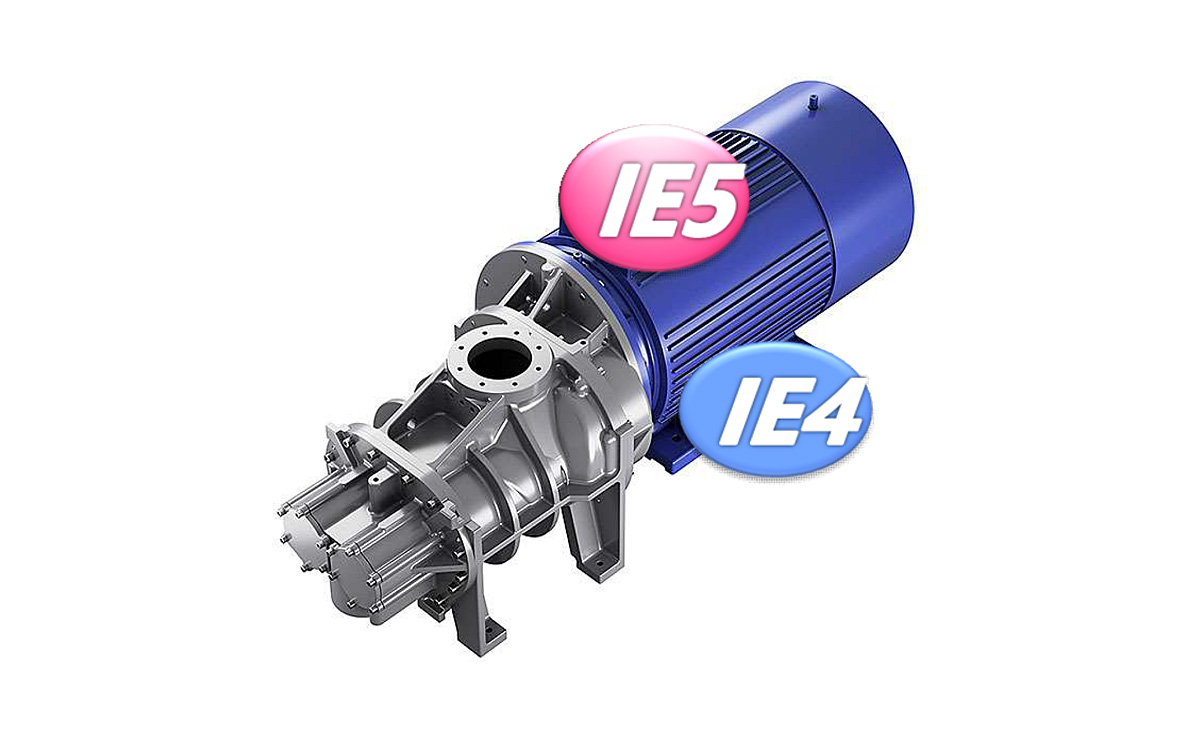

Full-Scale Upgrade of the Main Motor

Inverter models can be optionally equipped with IPM equivalent to IE5-class efficiency. Fixed-speed models are equipped with IE4-class high-efficiency motors. Bearings undergo high-temperature stabilization treatment, enhancing high-temperature durability. ※ For detailed motor specifications, please consult our sales department.

Built-in Over Hung Design

Improvement in Specific Energy ~Reduced up to 15％~

By incorporating a newly developed air-end and ultra-high-efficiency motor, combined with a sleek package design, New KOBELION series have achieved improvement in specific energy efficiency. That realizes significant saving in electricity and reduction of CO₂ emissions, promoting a greener and more sustainable future.

Wide range Control [VS⁺]

KOBELCO's wide range control, a pioneer in low-pressure increased airflow control for inverter machines, is also applied to large oil-injected models. A single model provides optimal variable speed control at all pressure points to optimize the user's energy -saving benefits.

Built-in Over Hung Design

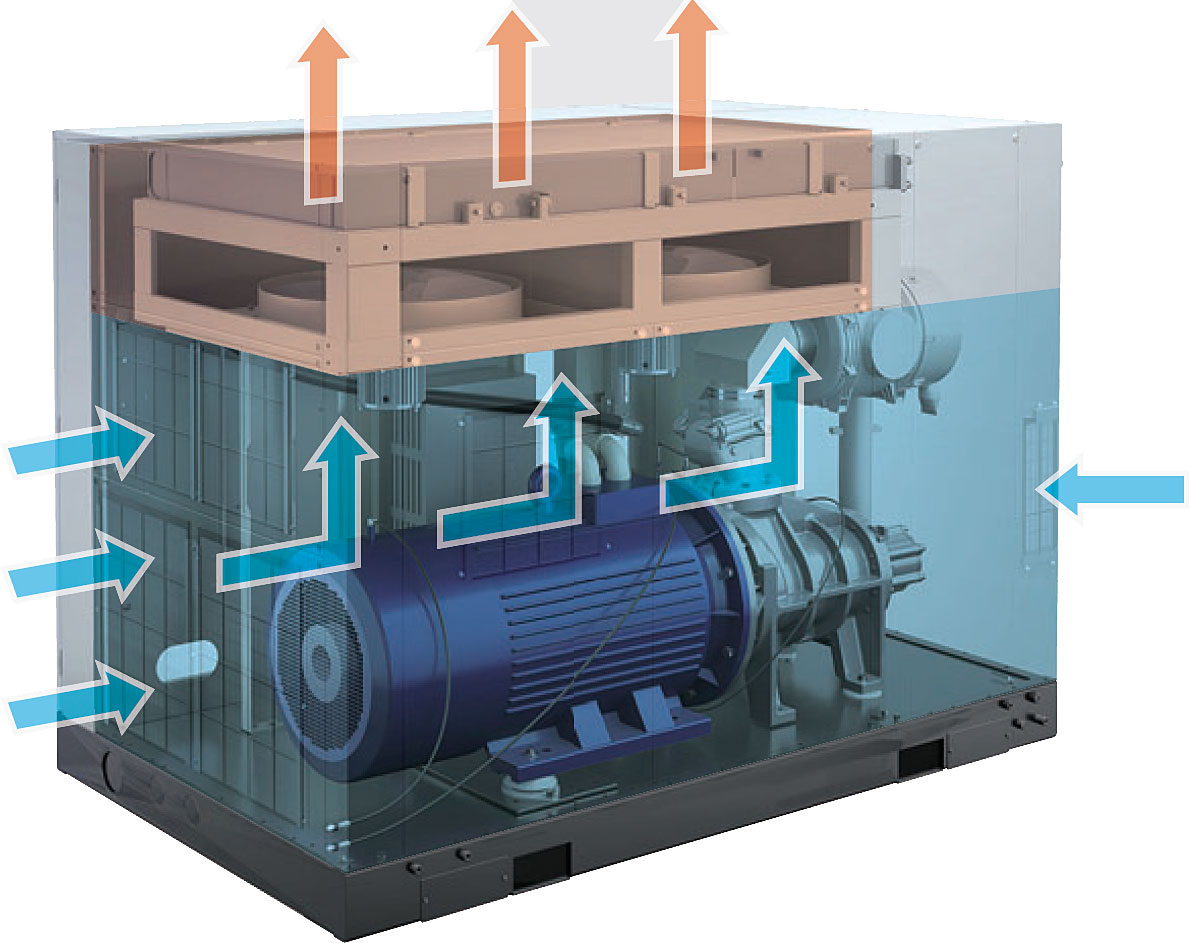

Enhanced Environmental Durability

Standard equipped dust filter elevates the environmental performance against dust and firth. Optimized cooling system enables to run even up to 50℃ ambient temperature.

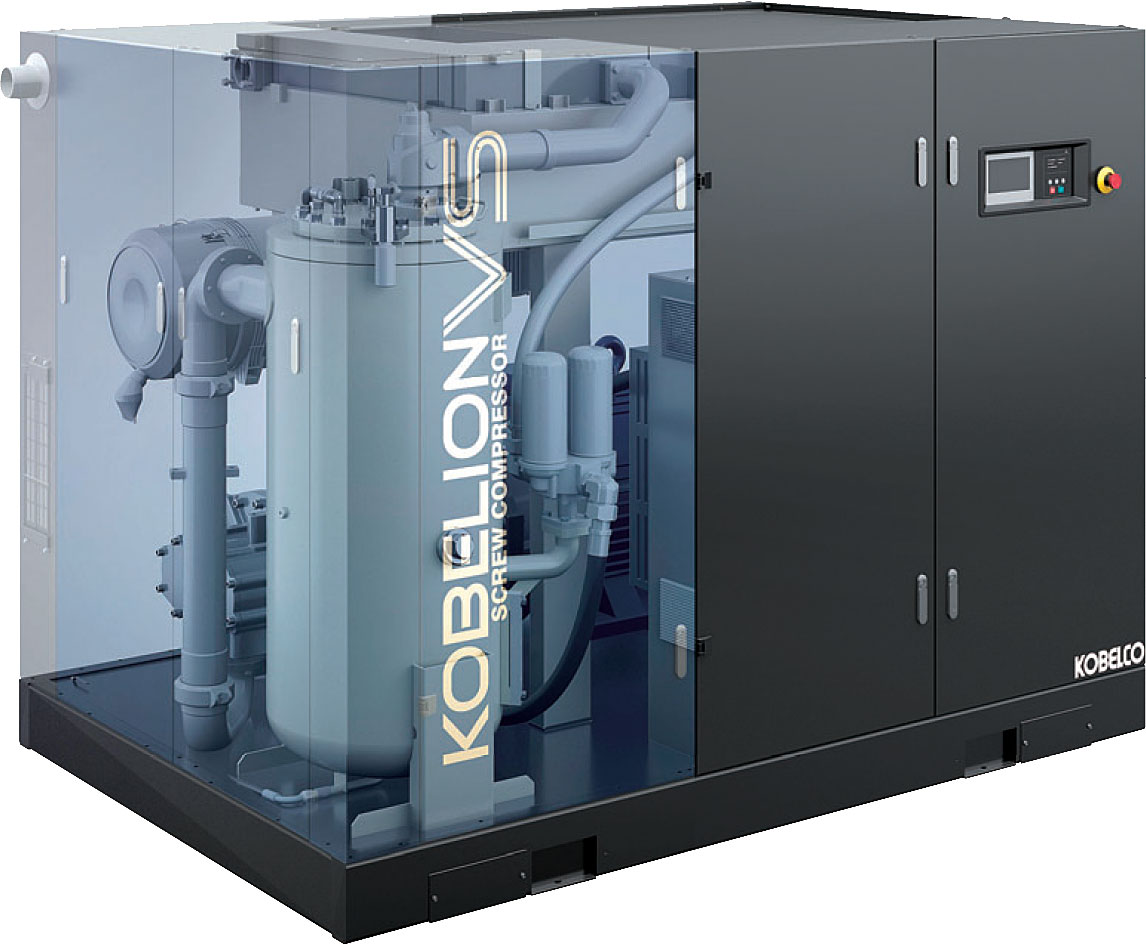

Exquisite Package Design

The adoption of spacious air piping and Victaulic joins reduces vibration and contributes to low pressure losses in the discharge air lines. The oil separation performance its industry- leading standard of 1.6ppm and less.

NGSC-700 controller as standard

KOBELCO's wide range control, a pioneer in low-pressure increased airflow control for inverter machines, is also applied to large oil-injected models. A single model provides optimal variable speed control at all pressure points to optimize the user's energy -saving benefits.

Built-in Over Hung Design
  • Operating condition
  • Maintenance schedule
  • Alarm/Interlock list
  • Alarm/Trip history
  • Compressor settings
  • Flow diagram
  • Daily, Weekly, Monthly record etc.

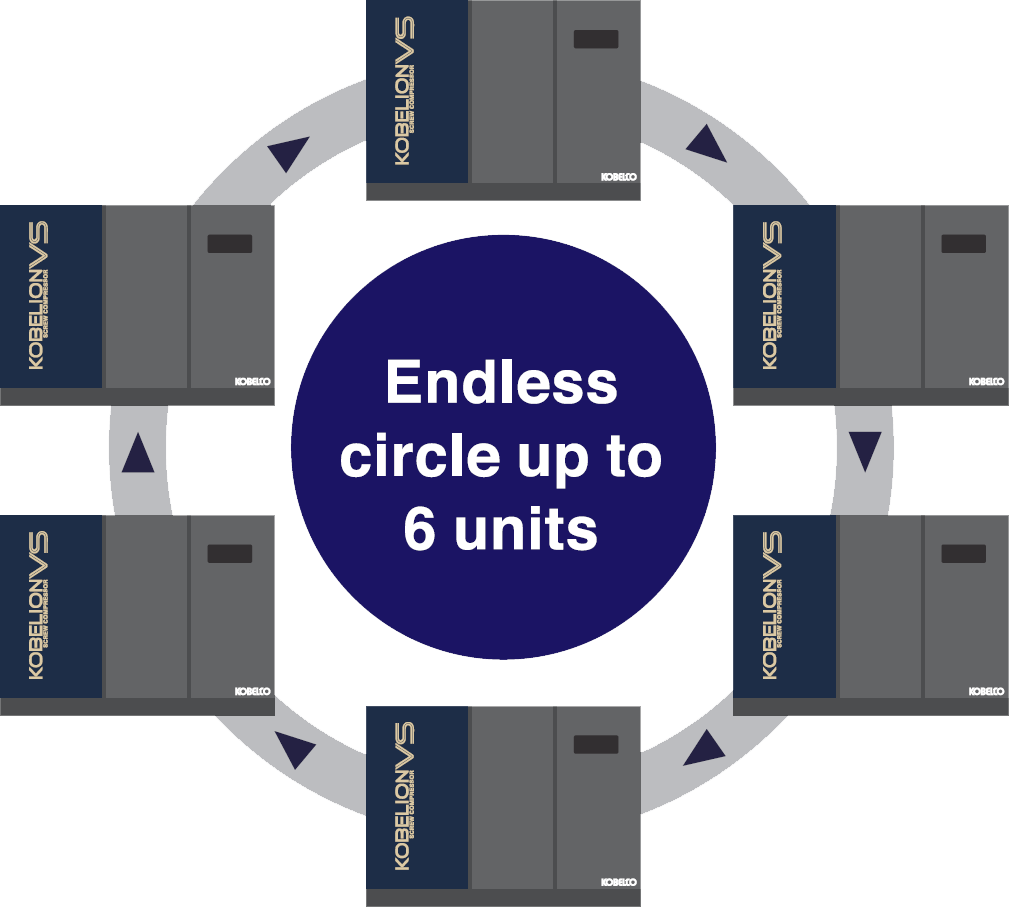

Compressor Group Control

Up to 6 units of compressor can be control by inbuilt sequencing function without external control panel. (Hard wire connections are needed.
